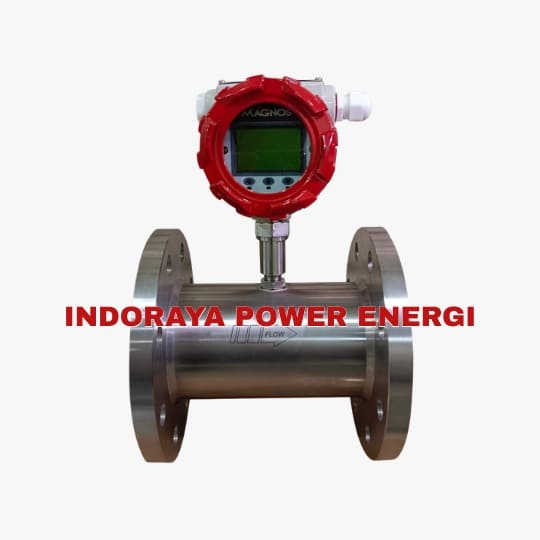

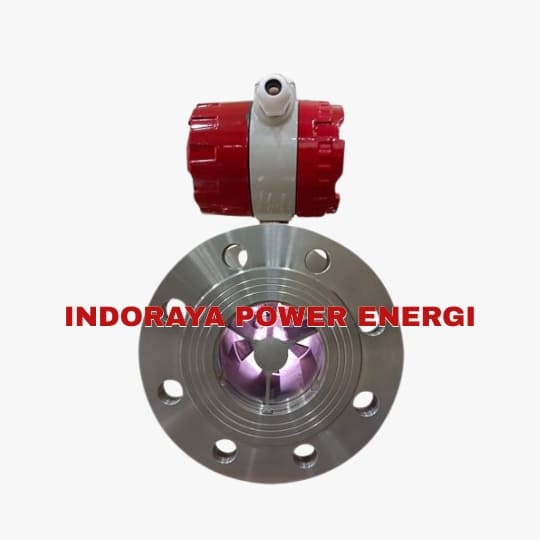

Digital Turbine Flow Meter Magnos

Digital Turbine Flow Meter Magnos

Spesifikasi Produk :

Digital Turbine Flow Meter Magnos:

Medium

Segala jenis minyak (minyak tanah, diesel kelapa sawit, minyak ringan, minyak berat) dan air ..

Connection

• Thread (Ulir) DN 4 - DN 50 mm

• Flange DN 15 - DN 200 mm (PN 16)

• Wafer DN 15 - DN 100 mm

Output

Pulse / 4-20mA

Power supply

24VDC

Nominal Pressure

1,6 Mpa

Fluid Temperature

-25 ~ +90°C

Protection grade

IP65

Accuracy

0.5% - 1.5%

Wetted Component

• Housing: SUS304 (optional: SUS316L)

• Bearings and Shaft: Tungsten Carbide

• Rotor: Standard - 2Cr13 Stainless Steel (Optional Alloy CD4Mcu)

• Retaining Rings: 316 Stainless Steel

Minta Penawaran Unduh Katalog

Deskripsi Produk

Digital Turbine Flow Meter Magnos adalah flow meter digital untuk mengukur aliran fluida cair menggunakan prinsip putaran turbin. Rotor berputar mengikuti aliran. Menghasilkan data yang ditampilkan secara digital.

Flow meter ini menggunakan housing Stainless Steel SUS304 (opsi SUS316L) dan mendukung output Pulse / 4-20mA dengan power supply 24VDC. Memiliki pressure 1.6 MPa, temperature -25°C hingga +90°C, IP65, dan akurasi 0.5%–1.5%.

Cocok untuk minyak (kerosene, diesel, palm oil, light & heavy oil) dan air. Tersedia ukuran 0.15” hingga 8” untuk berbagai kebutuhan industri. Dapatkan Digital Turbine Flow Meter Magnos di Distributor Indonesia, Indoraya Power Energi.

  • Digital Turbine Flow Meter Magnos 0.15 Inch

  • Digital Turbine Flow Meter Magnos 0.25 Inch

  • Digital Turbine Flow Meter Magnos 0.4 Inch

  • Digital Turbine Flow Meter Magnos 0.5 Inch

  • Digital Turbine Flow Meter Magnos 0.75 Inch

  • Digital Turbine Flow Meter Magnos 1 Inch

  • Digital Turbine Flow Meter Magnos 1.25 Inch

  • Digital Turbine Flow Meter Magnos 1.5 Inch

  • Digital Turbine Flow Meter Magnos 2 Inch

  • Digital Turbine Flow Meter Magnos 2.5 Inch

  • Digital Turbine Flow Meter Magnos 3 Inch

  • Digital Turbine Flow Meter Magnos 4 Inch

  • Digital Turbine Flow Meter Magnos 5 Inch

  • Digital Turbine Flow Meter Magnos 6 Inch

  • Digital Turbine Flow Meter Magnos 8 Inch

Datasheet :

Nominal Diameter (mm)

Nominal Diameter (in.)

Standard Flow Range (Water) (m³/h)

Standard Flow Range (Oil) (m³/h)

Standard Pres Rating (MPa)

Customized Pres Rating (MPa) - Flange Fitting

4

0.15

0.04 to 0.25

0.02 to 0.2

Thread: 1.6

12, 16, 25

6

0.25

0.1 to 0.6

0.1 to 0.4

Thread: 1.6

12, 16, 25

10

0.4

0.2 to 1.2

0.15 to 1

Thread: 1.6

12, 16, 25

15

0.5

0.6 to 6

0.4 to 4

Thread: 1.6; Flange: 1.6

4.0, 6.3, 12, 16, 25

20

0.75

0.8 to 8

0.6 to 5

Thread: 1.6; Flange: 1.6

4.0, 6.3, 12, 16, 25

25

1

1 to 10

0.8 to 7

Thread: 1.6; Flange: 1.6

4.0, 6.3, 12, 16, 25

32

1.25

1.5 to 15

1 to 13

Thread: 1.6; Flange: 1.6

4.0, 6.3, 12, 16, 25

40

1.5

2 to 25

2 to 18

Thread: 1.6; Flange: 1.6

4.0, 6.3, 12, 16, 25

50

2

4 to 40

4 to 25

Flange: 1.6

4.0, 6.3, 12, 16, 25

65

2.5

7 to 70

7 to 50

Flange: 1.6

4.0, 6.3, 12, 16, 25

80

3

10 to 100

8 to 80

Flange: 1.6

4.0, 6.3, 12, 16, 25

100

4

20 to 200

15 to 150

Flange: 1.6

4.0, 6.3, 12, 16, 25

125

5

25 to 250

25 to 200

Flange: 1.6

2.5, 4.0, 6.3, 12, 16

150

6

30 to 300

30 to 250

Flange: 1.6

2.5, 4.0, 6.3, 12, 16

200

8

80 to 800

80 to 600

Flange: 1.6

2.5, 4.0, 6.3, 12, 16
