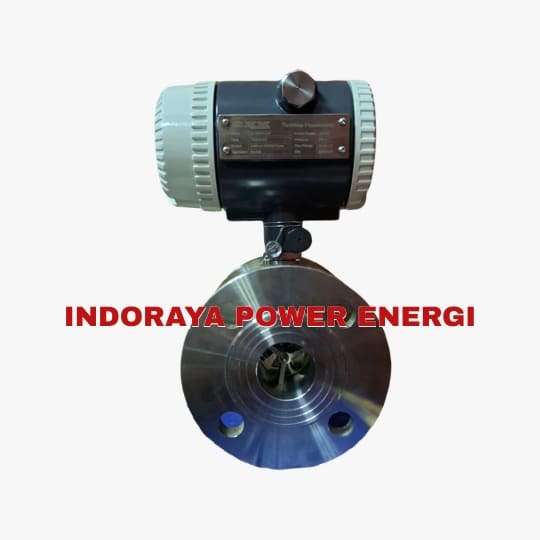

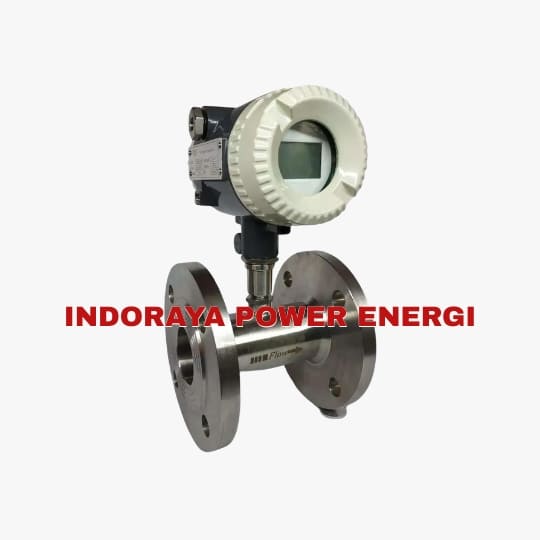

Digital Turbine Flow Meter SHM

Digital Turbine Flow Meter SHM

Spesifikasi Produk :

Size

DN 4 - 300

Material

  • Body & Rotor SS316L

  • Head Epoxy Coated Aluminium

  • Flange SS316L

Temperature

0-100°C

Pressure

16 Bar

Power Supply

24 VDC

Output

RS 485 / 4-20mA / Pulse

Protection Grade

IP 65

Connection

Flange (FL) PN 16

Accuracy

0.5%

Measurement Range

1:10 / 1:15 / 1:20

Repeatibility

0.05-2%

Explosion Proof

Exd II BT4

Warranty

2 Years (Full Service & Spare Parts)

Minta Penawaran Unduh Katalog

Deskripsi Produk

Digital Turbine Flow Meter SHM adalah flow meter digital untuk mengukur aliran fluida cair menggunakan prinsip putaran turbin. Rotor berputar mengikuti aliran. Menghasilkan data yang ditampilkan secara digital.

Flow meter ini menggunakan housing Stainless Steel SUS304 (opsi SUS316L) dan mendukung output Pulse / 4-20mA dengan power supply 24VDC. Memiliki pressure 1.6 MPa, temperature -25°C hingga +90°C, IP65, dan akurasi 0.5%-1.5%.

Cocok untuk minyak (kerosene, diesel, palm oil, light & heavy oil) dan air. Tersedia ukuran 0.15” hingga 12” untuk berbagai kebutuhan industri. Dapatkan Digital Turbine Flow Meter SHM di Distributor Indonesia, Indoraya Power Energi.

  • Digital Turbine Flow Meter SHM 0.15 Inch

  • Digital Turbine Flow Meter SHM 0.25 Inch

  • Digital Turbine Flow Meter SHM 0.4 Inch

  • Digital Turbine Flow Meter SHM 0.5 Inch

  • Digital Turbine Flow Meter SHM 0.75 Inch

  • Digital Turbine Flow Meter SHM 1 Inch

  • Digital Turbine Flow Meter SHM 1.25 Inch

  • Digital Turbine Flow Meter SHM 1.5 Inch

  • Digital Turbine Flow Meter SHM 2 Inch

  • Digital Turbine Flow Meter SHM 2.5 Inch

  • Digital Turbine Flow Meter SHM 3 Inch

  • Digital Turbine Flow Meter SHM 4 Inch

  • Digital Turbine Flow Meter SHM 5 Inch

  • Digital Turbine Flow Meter SHM 6 Inch

  • Digital Turbine Flow Meter SHM 8 Inch

  • Digital Turbine Flow Meter SHM 10 Inch

  • Digital Turbine Flow Meter SHM 12 Inch

Datasheet :

SIZE DN (mm)

SIZE INCH

FLOW RANGE (m3/h) REG FLOW

FLOW RANGE (m3/h) EXPAND FLOW

CONNECTION

PRESSURE (BAR)

DN 4

—

0.04-0.25

0.04-0.4

CL

16

DN 6

1/8"

0.1-0.6

0.06-0.6

CL

16

DN 10

3/8"

0.2-1.2

0.15-1.5

CL

16

DN 15

1/2"

0.6-6

0.4-8

CL / FL

16

DN 20

3/4"

0.8-8

0.45-9

CL / FL

16

DN 25

1"

1-10

0.5-10

CL / FL

16

DN 32

1 1/4"

1.5-15

0.8-15

CL / FL

16

DN 40

1 1/2"

2-20

1-20

FL

16

DN 50

2"

4-40

2-40

FL

16

DN 65

2 1/2"

7-70

4-70

FL

16

DN 80

3"

10-100

5-100

FL

16

DN 100

4"

20-200

10-200

FL

16

DN 125

5"

25-250

13-250

FL

16

DN 150

6"

30-300

15-300

FL

16

DN 200

8"

—

—

FL

16

DN 250

10"

—

—

FL

16

DN 300

12"

—

—

FL

16
