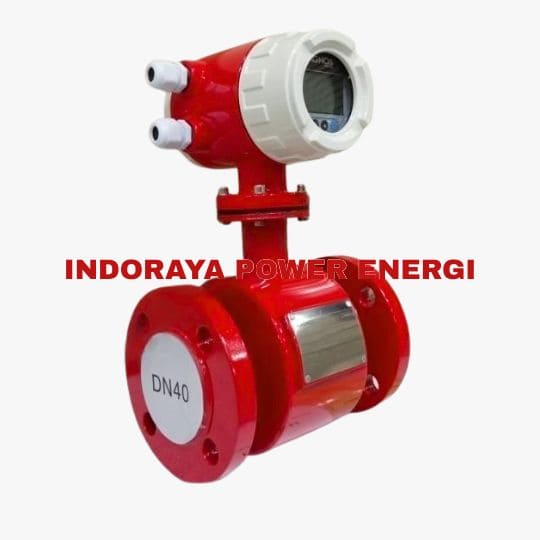

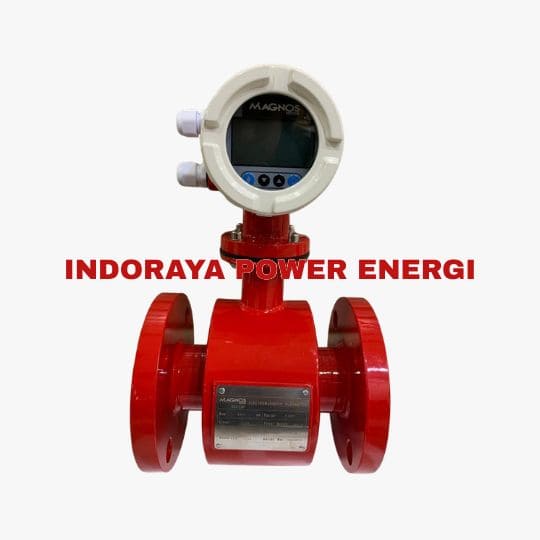

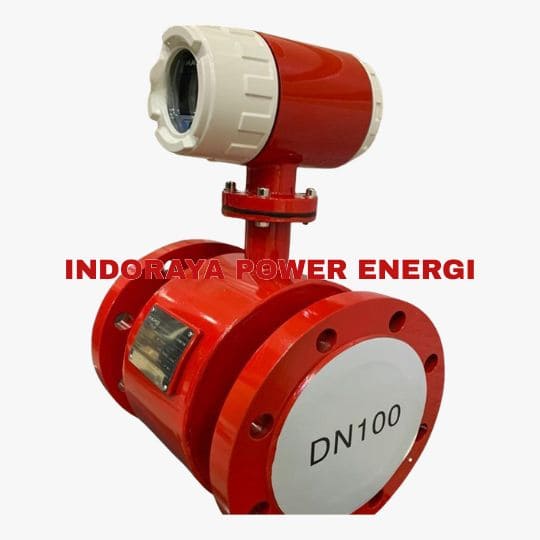

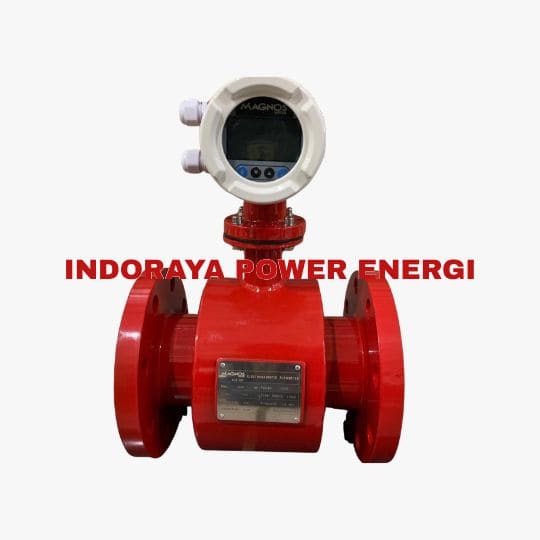

Electromagnetic Flowmeter Magnos

Electromagnetic Flowmeter Magnos

Spesifikasi Produk :

Electromagnetic flow meter MAGNOS tipe Integrated

High accuracy

± 0.5% of reading, ± 0.2% optional

Velocity

0.1 - 15m/s

Ambient Temperature

-25°C - 60°C

Protocol

Alarm

Material Housing

Carbon steel

Flange Connection

PN 16 ( Optional : Jis 10K, Ansi 150, PN 40 )

Power Supply

AC 220 V

Protection Grade

IP 65

Signal output

Analog output 4-20 mA , Communication RS 485

Electrode material

SUS316L ( Optional : Titatinum, Tantalum, Tungsten Carbide, Hastelloy B, Hastelloy C )

Liner Material

Polytetrafluoroethylene ( PTFE ) , ( Optional : PFA, Neoprene ( rubber ) , Polyurethane, F46 )

Minta Penawaran Unduh Katalog

Deskripsi Produk

Electromagnetic flow meter MAGNOS tipe Integrated adalah flow meter elektromagnetik yang mengukur aliran cairan konduktif dengan akurat dan stabil. Flowmeter MAGNOS ini adalah magnetic flow meter atau mag meter. Industri banyak memakai alat ini karena hambatan alirannya rendah dan tidak memiliki komponen yang bergerak. Desain ini membantu mengurangi perawatan dan meningkatkan keandalan operasional. MAGNOS electromagnetic flow meter tersedia dalam berbagai pilihan liner, elektroda, dan ukuran. Produk ini cocok untuk

  • Air baku (Air Mentah)

  • Air minum

  • Air limbah

  • Air pendingin

  • Air laut

  • Larutan garam (brine)

  • Industri pulp & minuman

  • Heat exchanger industri

  • Larutan asam & basa

Electromagnetic flow meter MAGNOS tipe Integrated tersedia untuk ukuran:

  • Electromagnetic flow meter MAGNOS tipe Integrated 1/2 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 3/4 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 1 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 1 1/4 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 1.5 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 2 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 2.5 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 3 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 4 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 5 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 6 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 8 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 10 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 12 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 14 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 16 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 20 Inch

  • Electromagnetic flow meter MAGNOS tipe Integrated 24 Inch

Datasheet Magnetic Flowmeter Magnos:

Size

Flow Range & Velocity

mm

Size (Inch)

0.1m/s

0.2m/s

0.5m/s

1m/s

4m/s

10m/s

12m/s

15m/s

DN15

½”

0.064

0.127

0.318

0.636

2.543

6.359

7.63

9.538

DN20

¾”

0.113

0.226

0.565

1.13

4.522

11.304

13.56

16.956

DN25

1”

0.177

0.353

0.883

1.766

7.065

17.663

21.2

26.494

DN32

1 ¼”

0.289

0.579

1.447

2.894

11.575

28.938

34.73

43.407

DN40

1 ½”

0.452

0.904

2.261

4.522

18.086

45.216

54.26

67.824

DN50

2”

0.707

1.413

3.533

7.065

28.26

70.65

84.78

105.9

DN65

2 ½”

1.19

2.39

5.97

11.94

47.76

119.4

143.3

179.1

DN80

3”

1.81

3.62

9.04

18.09

72.35

180.86

217

271.3

DN100

4”

2.83

5.65

14.13

28.26

113.04

282.6

339.1

423.9

DN125

5”

4.42

8.83

22.08

44.16

176.63

441.56

529.9

662.34

DN150

6”

6.36

12.72

31.79

63.59

254.34

635.85

763

953.78

DN200

8”

11.3

22.61

56.52

113.04

452.16

1130.4

1356

1696

DN250

10”

17.66

35.33

88.31

176.53

706.5

1766.25

2120

2649

DN300

12”

25.43

50.87

127.2

254.34

1017

2543.4

3052

3815

DN350

14”

34.62

69.24

173.1

346.19

1385

3461.85

4154

5193

DN400

16”

45

90

226.1

452

1809

4522

5426

6782

DN450

18”

57

114

286.1

572

2289

5723

6867

8584

DN500

20”

71

141

353.3

707

2826

7065

8478

10598

DN600

24”

102

203

508.7

1017

4069

10174

12208

15260
