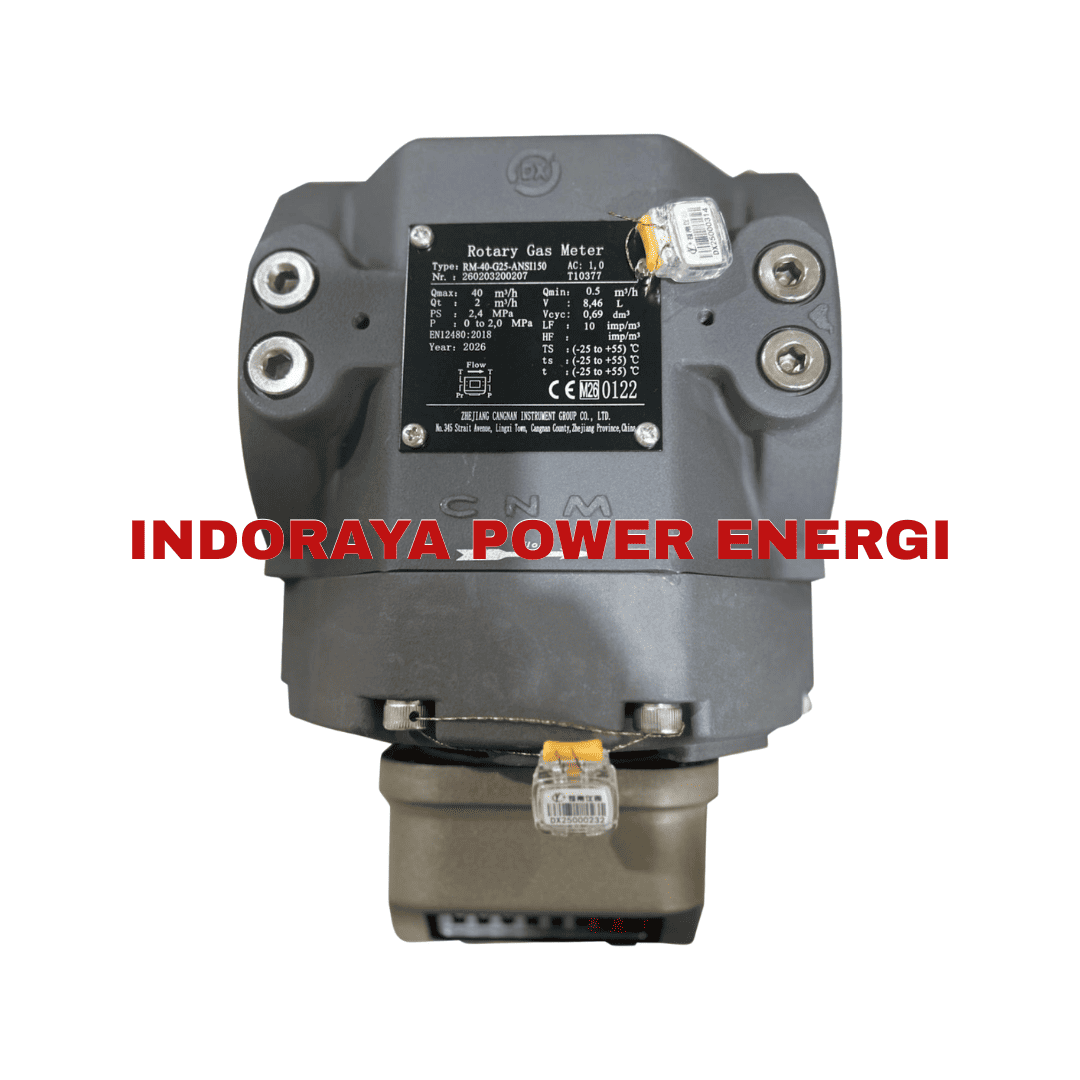

Rotary Gas Flowmeter Cangnan 1.5 Inch ANSI150 | RM-40
Spesifikasi Produk :
Product Name | Rotary Gas Flowmeter |
Brand | Cangnan |
Model | RM-40-G25-ANSI150 |
Serial Number | 260203200207 |
Nominal Size | 1.5 Inch |
Accuracy Class | 1.0 |
Approval Code | T10377 |
Maximum Flow Rate (Qmax) | 40 m³/h |
Minimum Flow Rate (Qmin) | 0.5 m³/h |
Transitional Flow Rate (Qt) | 2 m³/h |
Internal Volume (V) | 8.46 L |
Maximum Pressure (PS) | 2.4 MPa |
Cyclic Volume (Vcyc) | 0.69 dm³ |
Operating Pressure | 0 to 2.0 MPa |
Low Frequency Pulse (LF) | 10 imp/m³ |
Storage Temperature (TS) | -25 to +55°C |
Ambient Temperature (ts) | -25 to +55°C |
Gas Temperature (t) | -25 to +55°C |
Flowmeter Type | Positive Displacement Gas Meter |
Application | Industrial Gas Metering |
Deskripsi Produk
Rotary Gas Flowmeter Cangnan RM-40-G25-ANSI150 ukuran 1.5 inch adalah positive-displacement gas meter untuk mengukur aliran gas pada pipa yang mengalir. Produk ini memiliki Qmax 40 m³/h, Qmin 0.5 m³/h, Qt 2 m³/h, accuracy class 1.0, pressure up to 2.0 MPa, dan design pressure 2.4 MPa. Flowmeter ini cocok untuk aplikasi gas distribution, plant utility, process gas system, dan kebutuhan metering industri.
