Flowmeter Liquid Control
Spesifikasi Produk :
Flow Meter Liquid Controls (LC) USA. Flowmeter positive-displacement. Desain tri-rotor menghilangkan kontak logam langsung antar komponen. Hal ini mengurangi keausan, menjaga akurasi jangka panjang, dan meminimalkan kebutuhan kalibrasi. Produk Original & Bergaransi. Tersedia seri M, MA, MSA, MSAA. Setiap produk akan dilakukan tera / kalibrasi metrologi
Deskripsi Produk
Tersedia seri:
Flow Meter Liquid Control M-5
Flow Meter Liquid Control M-7
Flow Meter Liquid Control M-10
Flow Meter Liquid Control M-15
Flow Meter Liquid Control M-25
Flow Meter Liquid Control M-30
Flow Meter Liquid Control M-40
Flow Meter Liquid Control M-60
RANGE & SPECIFICATIONS:
Seri | Size | Flange Size (Inches) | Nominal Flow Rate Range (LPM) | Maximum Pressure (PSI) | Maximum Pressure (BAR) | Maximum Pressure (kPa) |
|---|---|---|---|---|---|---|
M-Series | M-5 | 1.5 | 22-227 | 150 | 10.3 | 1034 |
M-Series | M-7 | 2 | 20-378 | 150 | 10.3 | 1034 |
M-Series | M-10 | 2 | 56-567 | 150 | 10.3 | 1034 |
M-Series | M-15 | 3 | 75-756 | 150 | 10.3 | 1034 |
M-Series | M-25 | 3 | 110-1134 | 150 | 10.3 | 1034 |
M-Series | M-30 | 4 | 132-1323 | 150 | 10.3 | 1034 |
M-Series | M-40 | 4 | 170-1701 | 150 | 10.3 | 1034 |
M-Series | M-40 AVI* | 4 | 170-2268 | 150 | 10.3 | 1034 |
M-Series | M-60 | 4 | 225-2268 | 150 | 10.3 | 1034 |
M-Series | M-80 | 6 | 300-3024 | 150 | 10.3 | 1034 |

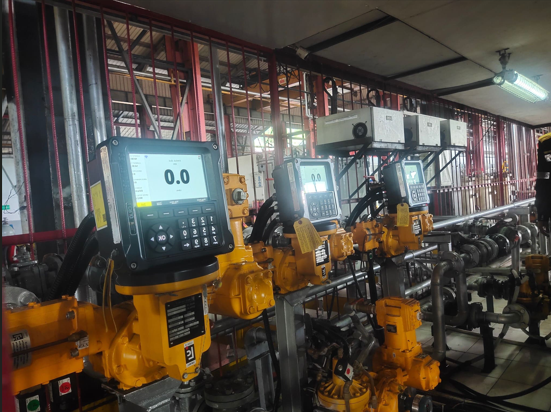

Instalasi Fowmeter Liquid Control Oleh Indoraya Power Energi:
↓↓↓
